PE指的是windows下的32位可执行文件，又叫PE32。64位的可执行文件成为PE+或者PE32+

PE拓展名如下:(摘自逆向工程核心原理13.2)

种类 主扩展名
可执行系列 EXE、SCR
驱动程序系列 SYS、VSD
库系列 DLL、OCX、CPL、DRV
对象文件系列 OBJ

众所周知，文件拓展名只是影响通过什么东西去打开这个文件，或者怎样解析这个文件，和文件本身没有关系，因此主要作用就是了解一下（

VA&RVA

VA就是Virtual Address，就是我们日常说的虚拟地址，程序运行的时候使用的地址，RVA是Relative Virtual Address，从某个基地址开始的地址，关系如下
VA = ImageBase+RVA，PE头的信息大多以RVA形式给出

PE文件结构

在这里使用MinGW编译一个很简单的程序

1
2
3
4
5
#include <stdio.h>
int main(){
    printf("PE format!\n");
    return 0;
}

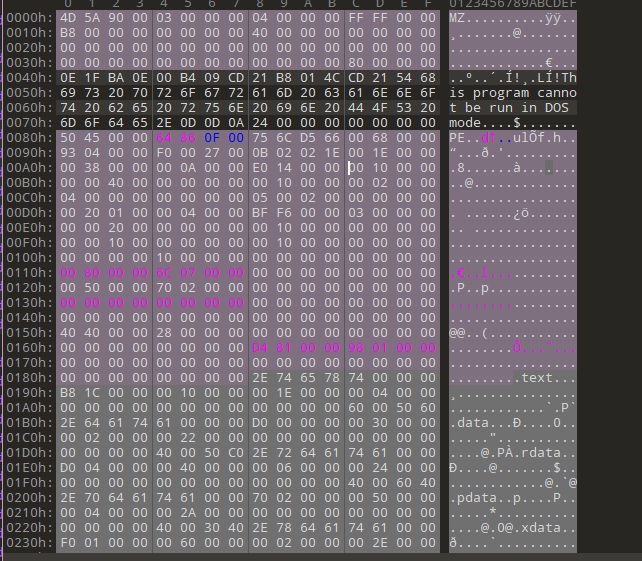

编译后的二进制文件如下：

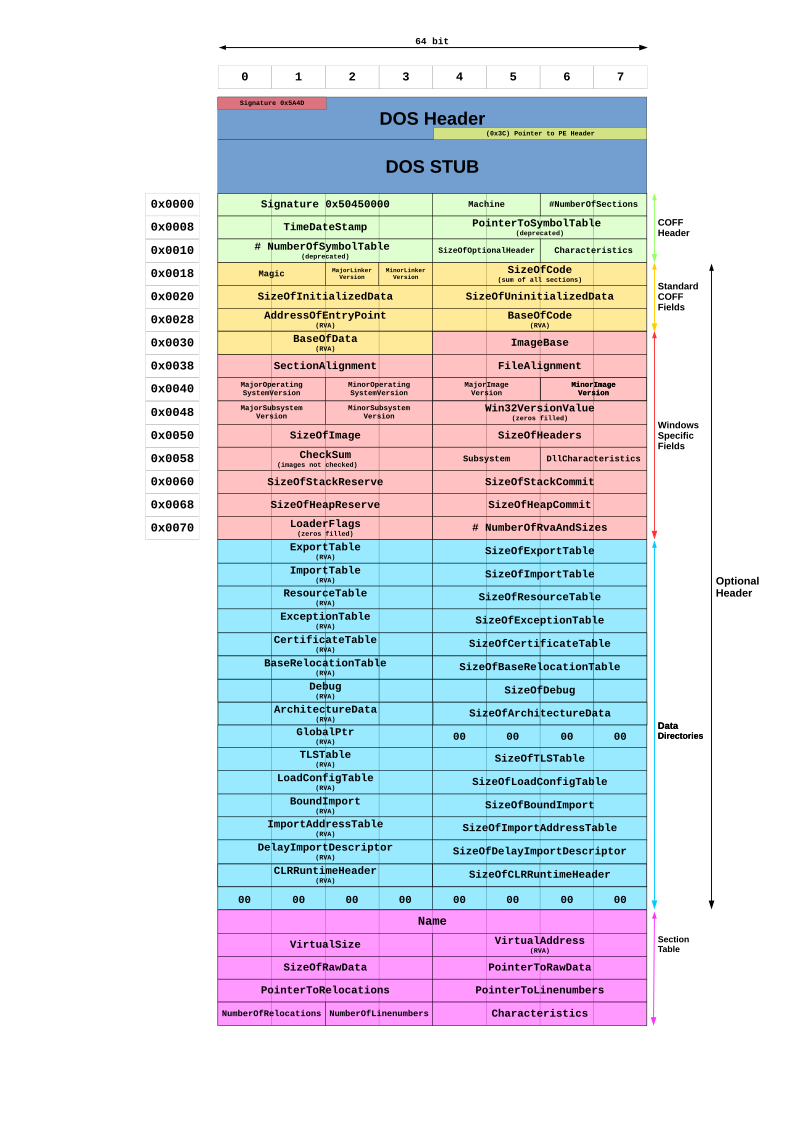

维基百科中PE32结构如下

可以在Windows Kit里面的winnt.h中查看具体结构
大致分为：

  • MS-DOS 头
  • MS-DOS 存根
  • PE 文件头
  • 节表
  • 节数据
  • 调试信息

1.DOS头

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
typedef struct _IMAGE_DOS_HEADER {      // DOS .EXE header
    WORD   e_magic;                     // Magic number
    WORD   e_cblp;                      // Bytes on last page of file
    WORD   e_cp;                        // Pages in file
    WORD   e_crlc;                      // Relocations
    WORD   e_cparhdr;                   // Size of header in paragraphs
    WORD   e_minalloc;                  // Minimum extra paragraphs needed
    WORD   e_maxalloc;                  // Maximum extra paragraphs needed
    WORD   e_ss;                        // Initial (relative) SS value
    WORD   e_sp;                        // Initial SP value
    WORD   e_csum;                      // Checksum
    WORD   e_ip;                        // Initial IP value
    WORD   e_cs;                        // Initial (relative) CS value
    WORD   e_lfarlc;                    // File address of relocation table
    WORD   e_ovno;                      // Overlay number
    WORD   e_res[4];                    // Reserved words
    WORD   e_oemid;                     // OEM identifier (for e_oeminfo)
    WORD   e_oeminfo;                   // OEM information; e_oemid specific
    WORD   e_res2[10];                  // Reserved words
    LONG   e_lfanew;                    // File address of new exe header
  } IMAGE_DOS_HEADER, *PIMAGE_DOS_HEADER;

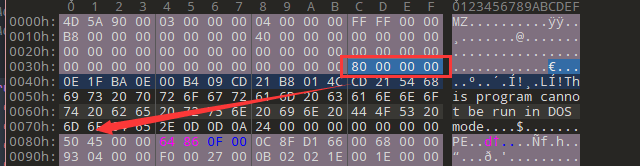

该结构体大小40字节（18*WORD+LONG）重点是e_magic和e_lfanew，前者是MZ，DOS头魔数，后一个e_lfanew指向了新的exe头的文件偏移，从我们编译出来的文件来看：

第37-40字节的值(小端序)0x80指向PE头。

2.DOS存根

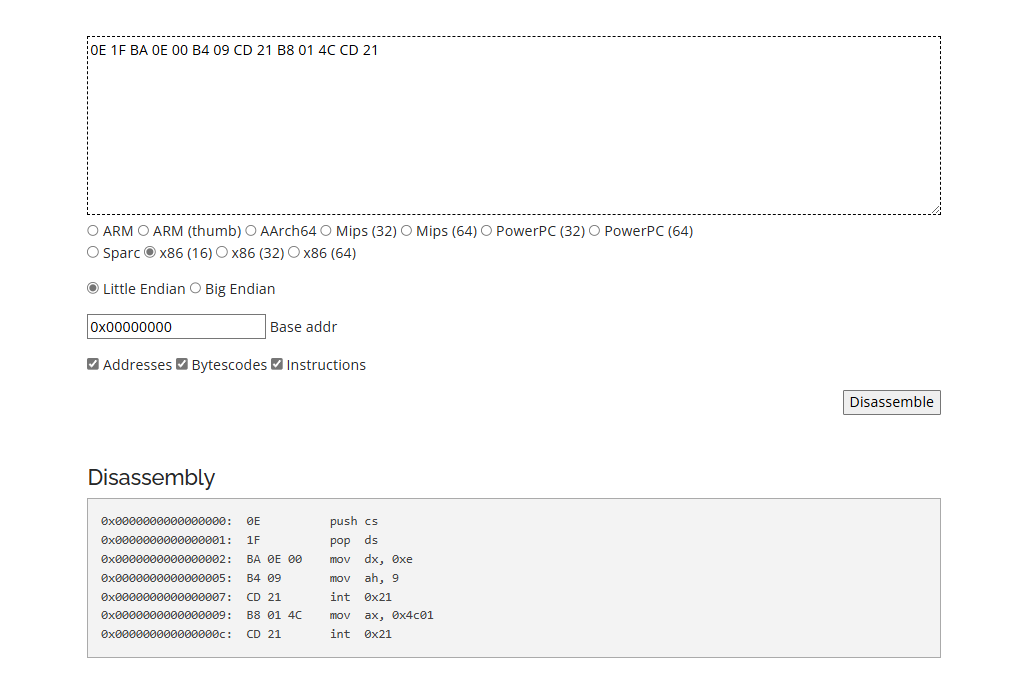

DOS存根就是DOS头下的部分，我们将除了字符串的部分进行反汇编

1
2
3
4
5
6
7
0x0000000000000000:  0E          push cs
0x0000000000000001:  1F          pop  ds
0x0000000000000002:  BA 0E 00    mov  dx, 0xe
0x0000000000000005:  B4 09       mov  ah, 9
0x0000000000000007:  CD 21       int  0x21  //print
0x0000000000000009:  B8 01 4C    mov  ax, 0x4c01
0x000000000000000c:  CD 21       int  0x21  //exit

可以看到，他把cs移动到ds，把0xe(字符串地址)移动到dx，调用系统调用打印字符串，之后调用exit系统调用退出

3.PE头

1
2
3
4
5
6
7
8
9
10
11
typedef struct _IMAGE_NT_HEADERS64 {
    DWORD Signature;                          //签名 PE 00
    IMAGE_FILE_HEADER FileHeader;             //PE头
    IMAGE_OPTIONAL_HEADER64 OptionalHeader;   //拓展PE头
} IMAGE_NT_HEADERS64, *PIMAGE_NT_HEADERS64;

typedef struct _IMAGE_NT_HEADERS {
    DWORD Signature;                         //签名 PE 00
    IMAGE_FILE_HEADER FileHeader;            //PE头
    IMAGE_OPTIONAL_HEADER32 OptionalHeader;  //拓展PE头
} IMAGE_NT_HEADERS32, *PIMAGE_NT_HEADERS32;

PE头结构如上，其中IMAGE_FILE_HEADER结构如下

1
2
3
4
5
6
7
8
9
typedef struct _IMAGE_FILE_HEADER {
    WORD    Machine;                        //运行的平台
    WORD    NumberOfSections;               //节的数量
    DWORD   TimeDateStamp;                  //编译器时间戳
    DWORD   PointerToSymbolTable;           //符号表指针
    DWORD   NumberOfSymbols;                //符号数量
    WORD    SizeOfOptionalHeader;           //拓展PE头大小
    WORD    Characteristics;                //文件属性
} IMAGE_FILE_HEADER, *PIMAGE_FILE_HEADER;
  • Machine 可以在什么机器上运行
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    #define IMAGE_FILE_MACHINE_UNKNOWN           0
    #define IMAGE_FILE_MACHINE_TARGET_HOST       0x0001  // Useful for indicating we want to interact with the host and not a WoW guest.
    #define IMAGE_FILE_MACHINE_I386              0x014c  // Intel 386.
    #define IMAGE_FILE_MACHINE_R3000             0x0162  // MIPS little-endian, 0x160 big-endian
    #define IMAGE_FILE_MACHINE_R4000             0x0166  // MIPS little-endian
    #define IMAGE_FILE_MACHINE_R10000            0x0168  // MIPS little-endian
    #define IMAGE_FILE_MACHINE_WCEMIPSV2         0x0169  // MIPS little-endian WCE v2
    #define IMAGE_FILE_MACHINE_ALPHA             0x0184  // Alpha_AXP
    #define IMAGE_FILE_MACHINE_SH3               0x01a2  // SH3 little-endian
    #define IMAGE_FILE_MACHINE_SH3DSP            0x01a3
    #define IMAGE_FILE_MACHINE_SH3E              0x01a4  // SH3E little-endian
    #define IMAGE_FILE_MACHINE_SH4               0x01a6  // SH4 little-endian
    #define IMAGE_FILE_MACHINE_SH5               0x01a8  // SH5
    #define IMAGE_FILE_MACHINE_ARM               0x01c0  // ARM Little-Endian
    #define IMAGE_FILE_MACHINE_THUMB             0x01c2  // ARM Thumb/Thumb-2 Little-Endian
    #define IMAGE_FILE_MACHINE_ARMNT             0x01c4  // ARM Thumb-2 Little-Endian
    #define IMAGE_FILE_MACHINE_AM33              0x01d3
    #define IMAGE_FILE_MACHINE_POWERPC           0x01F0  // IBM PowerPC Little-Endian
    #define IMAGE_FILE_MACHINE_POWERPCFP         0x01f1
    #define IMAGE_FILE_MACHINE_IA64              0x0200  // Intel 64
    #define IMAGE_FILE_MACHINE_MIPS16            0x0266  // MIPS
    #define IMAGE_FILE_MACHINE_ALPHA64           0x0284  // ALPHA64
    #define IMAGE_FILE_MACHINE_MIPSFPU           0x0366  // MIPS
    #define IMAGE_FILE_MACHINE_MIPSFPU16         0x0466  // MIPS
    #define IMAGE_FILE_MACHINE_AXP64             IMAGE_FILE_MACHINE_ALPHA64
    #define IMAGE_FILE_MACHINE_TRICORE           0x0520  // Infineon
    #define IMAGE_FILE_MACHINE_CEF               0x0CEF
    #define IMAGE_FILE_MACHINE_EBC               0x0EBC  // EFI Byte Code
    #define IMAGE_FILE_MACHINE_AMD64             0x8664  // AMD64 (K8)
    #define IMAGE_FILE_MACHINE_M32R              0x9041  // M32R little-endian
    #define IMAGE_FILE_MACHINE_ARM64             0xAA64  // ARM64 Little-Endian
    #define IMAGE_FILE_MACHINE_CEE               0xC0EE
  • Characteristics 文件属性
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    #define IMAGE_FILE_RELOCS_STRIPPED           0x0001  // Relocation info stripped from file.
    #define IMAGE_FILE_EXECUTABLE_IMAGE          0x0002  // File is executable  (i.e. no unresolved external references).
    #define IMAGE_FILE_LINE_NUMS_STRIPPED        0x0004  // Line nunbers stripped from file.
    #define IMAGE_FILE_LOCAL_SYMS_STRIPPED       0x0008  // Local symbols stripped from file.
    #define IMAGE_FILE_AGGRESIVE_WS_TRIM         0x0010  // Aggressively trim working set
    #define IMAGE_FILE_LARGE_ADDRESS_AWARE       0x0020  // App can handle >2gb addresses
    #define IMAGE_FILE_BYTES_REVERSED_LO         0x0080  // Bytes of machine word are reversed.
    #define IMAGE_FILE_32BIT_MACHINE             0x0100  // 32 bit word machine.
    #define IMAGE_FILE_DEBUG_STRIPPED            0x0200  // Debugging info stripped from file in .DBG file
    #define IMAGE_FILE_REMOVABLE_RUN_FROM_SWAP   0x0400  // If Image is on removable media, copy and run from the swap file.
    #define IMAGE_FILE_NET_RUN_FROM_SWAP         0x0800  // If Image is on Net, copy and run from the swap file.
    #define IMAGE_FILE_SYSTEM                    0x1000  // System File.
    #define IMAGE_FILE_DLL                       0x2000  // File is a DLL.
    #define IMAGE_FILE_UP_SYSTEM_ONLY            0x4000  // File should only be run on a UP machine
    #define IMAGE_FILE_BYTES_REVERSED_HI         0x8000  // Bytes of machine word are reversed.
    该文件属性为27 00即0x27 = 0b0010 0111，对应IMAGE_FILE_RELOCS_STRIPPED, IMAGE_FILE_EXECUTABLE_IMAGE, IMAGE_FILE_LINE_NUMS_STRIPPED, IMAGE_FILE_LARGE_ADDRESS_AWARE

PE拓展头

PE32的拓展头如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
typedef struct _IMAGE_OPTIONAL_HEADER {
    //
    // Standard fields.
    //

    WORD    Magic;                       //PE32: 10B PE64: 20B
    BYTE    MajorLinkerVersion;
    BYTE    MinorLinkerVersion;
    DWORD   SizeOfCode;
    DWORD   SizeOfInitializedData;
    DWORD   SizeOfUninitializedData;
    DWORD   AddressOfEntryPoint;         //程序入口RVA
    DWORD   BaseOfCode;                  //数据段RVA
    DWORD   BaseOfData;                  //数据段RVA

    //
    // NT additional fields.
    //

    DWORD   ImageBase;                   //镜像基址
    DWORD   SectionAlignment;            //内存对齐
    DWORD   FileAlignment;               //文件对齐
    WORD    MajorOperatingSystemVersion; //版本号相关，以下同
    WORD    MinorOperatingSystemVersion;
    WORD    MajorImageVersion;
    WORD    MinorImageVersion;
    WORD    MajorSubsystemVersion;
    WORD    MinorSubsystemVersion;
    DWORD   Win32VersionValue;
    DWORD   SizeOfImage;                //镜像映射到内存中的大小，必须是内存对齐的整数倍
    DWORD   SizeOfHeaders;              //MS DOS 存根、PE 标头和节标头的组合大小，其向上舍入到 FileAlignment 的倍数。
    DWORD   CheckSum;
    WORD    Subsystem;                  //运行所需子系统
    WORD    DllCharacteristics;         //DLL特征
    DWORD   SizeOfStackReserve;         //保留栈大小
    DWORD   SizeOfStackCommit;          //提交栈大小
    DWORD   SizeOfHeapReserve;          //保留堆大小
    DWORD   SizeOfHeapCommit;           //提交堆大小
    DWORD   LoaderFlags;
    DWORD   NumberOfRvaAndSizes;        //DataDirectory个数
    IMAGE_DATA_DIRECTORY DataDirectory[IMAGE_NUMBEROF_DIRECTORY_ENTRIES];  //可选标头数据目录
} IMAGE_OPTIONAL_HEADER32, *PIMAGE_OPTIONAL_HEADER32;

  • subsystem
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    #define IMAGE_SUBSYSTEM_UNKNOWN              0   // Unknown subsystem.
    #define IMAGE_SUBSYSTEM_NATIVE               1   // Image doesn't require a subsystem.
    #define IMAGE_SUBSYSTEM_WINDOWS_GUI          2   // Image runs in the Windows GUI subsystem.
    #define IMAGE_SUBSYSTEM_WINDOWS_CUI          3   // Image runs in the Windows character subsystem.
    #define IMAGE_SUBSYSTEM_OS2_CUI              5   // image runs in the OS/2 character subsystem.
    #define IMAGE_SUBSYSTEM_POSIX_CUI            7   // image runs in the Posix character subsystem.
    #define IMAGE_SUBSYSTEM_NATIVE_WINDOWS       8   // image is a native Win9x driver.
    #define IMAGE_SUBSYSTEM_WINDOWS_CE_GUI       9   // Image runs in the Windows CE subsystem.
    #define IMAGE_SUBSYSTEM_EFI_APPLICATION      10  //
    #define IMAGE_SUBSYSTEM_EFI_BOOT_SERVICE_DRIVER  11   //
    #define IMAGE_SUBSYSTEM_EFI_RUNTIME_DRIVER   12  //
    #define IMAGE_SUBSYSTEM_EFI_ROM              13
    #define IMAGE_SUBSYSTEM_XBOX                 14
    #define IMAGE_SUBSYSTEM_WINDOWS_BOOT_APPLICATION 16
    #define IMAGE_SUBSYSTEM_XBOX_CODE_CATALOG    17

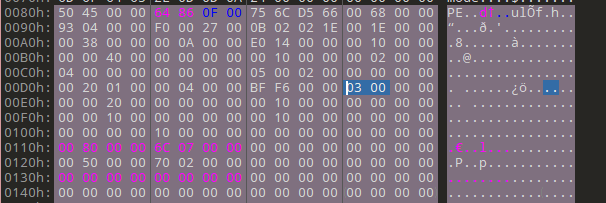

    该程序为WINDOWS_CUI即命令行程序
    DataDirectory中包含导出表，导入表，资源表，证书表等一系列东西链接

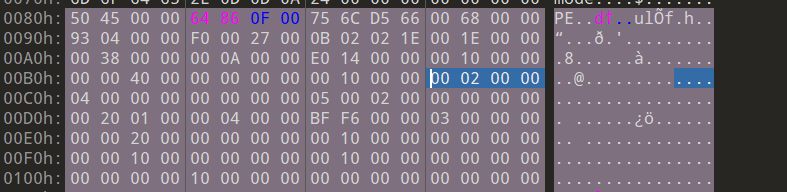

文件对其为512字节(0x200)

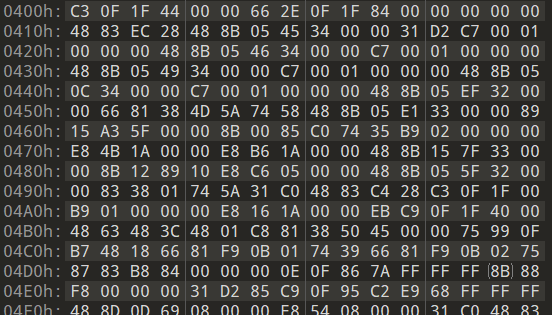

文件头(DOS头+PE头+节表)开始在文件便宜0的位置，结束于0x400-1，大小0x400即1024，红色部分是对齐的填充

计算可知，文件头区大小为

4.节区头

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
typedef struct _IMAGE_SECTION_HEADER {
    BYTE    Name[IMAGE_SIZEOF_SHORT_NAME]; //节名称
    union {
            DWORD   PhysicalAddress;
            DWORD   VirtualSize;           //加载到内存中的大小
    } Misc;
    DWORD   VirtualAddress;                //镜像RVA
    DWORD   SizeOfRawData;                 //文件中节的大小
    DWORD   PointerToRawData;              //节在文件中的偏移
    DWORD   PointerToRelocations;
    DWORD   PointerToLinenumbers;          //指向表示行号的东西，调试相关
    WORD    NumberOfRelocations;
    WORD    NumberOfLinenumbers;
    DWORD   Characteristics;               //节的属性
} IMAGE_SECTION_HEADER, *PIMAGE_SECTION_HEADER;

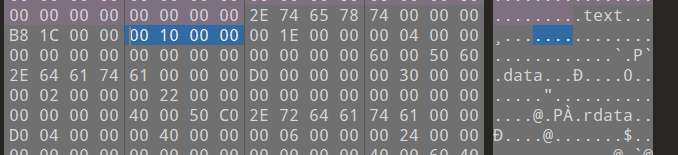

节区头大小为40字节，注意，节名称没有规定，数据段也可以叫.text,在我的电脑中，Characteristics如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
//
// Section characteristics.
//
//      IMAGE_SCN_TYPE_REG                   0x00000000  // Reserved.
//      IMAGE_SCN_TYPE_DSECT                 0x00000001  // Reserved.
//      IMAGE_SCN_TYPE_NOLOAD                0x00000002  // Reserved.
//      IMAGE_SCN_TYPE_GROUP                 0x00000004  // Reserved.
#define IMAGE_SCN_TYPE_NO_PAD                0x00000008  // Reserved.
//      IMAGE_SCN_TYPE_COPY                  0x00000010  // Reserved.

#define IMAGE_SCN_CNT_CODE                   0x00000020  // Section contains code.
#define IMAGE_SCN_CNT_INITIALIZED_DATA       0x00000040  // Section contains initialized data.
#define IMAGE_SCN_CNT_UNINITIALIZED_DATA     0x00000080  // Section contains uninitialized data.

#define IMAGE_SCN_LNK_OTHER                  0x00000100  // Reserved.
#define IMAGE_SCN_LNK_INFO                   0x00000200  // Section contains comments or some other type of information.
//      IMAGE_SCN_TYPE_OVER                  0x00000400  // Reserved.
#define IMAGE_SCN_LNK_REMOVE                 0x00000800  // Section contents will not become part of image.
#define IMAGE_SCN_LNK_COMDAT                 0x00001000  // Section contents comdat.
//                                           0x00002000  // Reserved.
//      IMAGE_SCN_MEM_PROTECTED - Obsolete   0x00004000
#define IMAGE_SCN_NO_DEFER_SPEC_EXC          0x00004000  // Reset speculative exceptions handling bits in the TLB entries for this section.
#define IMAGE_SCN_GPREL                      0x00008000  // Section content can be accessed relative to GP
#define IMAGE_SCN_MEM_FARDATA                0x00008000
//      IMAGE_SCN_MEM_SYSHEAP  - Obsolete    0x00010000
#define IMAGE_SCN_MEM_PURGEABLE              0x00020000
#define IMAGE_SCN_MEM_16BIT                  0x00020000
#define IMAGE_SCN_MEM_LOCKED                 0x00040000
#define IMAGE_SCN_MEM_PRELOAD                0x00080000

#define IMAGE_SCN_ALIGN_1BYTES               0x00100000  //
#define IMAGE_SCN_ALIGN_2BYTES               0x00200000  //
#define IMAGE_SCN_ALIGN_4BYTES               0x00300000  //
#define IMAGE_SCN_ALIGN_8BYTES               0x00400000  //
#define IMAGE_SCN_ALIGN_16BYTES              0x00500000  // Default alignment if no others are specified.
#define IMAGE_SCN_ALIGN_32BYTES              0x00600000  //
#define IMAGE_SCN_ALIGN_64BYTES              0x00700000  //
#define IMAGE_SCN_ALIGN_128BYTES             0x00800000  //
#define IMAGE_SCN_ALIGN_256BYTES             0x00900000  //
#define IMAGE_SCN_ALIGN_512BYTES             0x00A00000  //
#define IMAGE_SCN_ALIGN_1024BYTES            0x00B00000  //
#define IMAGE_SCN_ALIGN_2048BYTES            0x00C00000  //
#define IMAGE_SCN_ALIGN_4096BYTES            0x00D00000  //
#define IMAGE_SCN_ALIGN_8192BYTES            0x00E00000  //
// Unused                                    0x00F00000
#define IMAGE_SCN_ALIGN_MASK                 0x00F00000

#define IMAGE_SCN_LNK_NRELOC_OVFL            0x01000000  // Section contains extended relocations.
#define IMAGE_SCN_MEM_DISCARDABLE            0x02000000  // Section can be discarded.
#define IMAGE_SCN_MEM_NOT_CACHED             0x04000000  // Section is not cachable.
#define IMAGE_SCN_MEM_NOT_PAGED              0x08000000  // Section is not pageable.
#define IMAGE_SCN_MEM_SHARED                 0x10000000  // Section is shareable.
#define IMAGE_SCN_MEM_EXECUTE                0x20000000  // Section is executable.
#define IMAGE_SCN_MEM_READ                   0x40000000  // Section is readable.
#define IMAGE_SCN_MEM_WRITE                  0x80000000  // Section is writeable.

//
// TLS Characteristic Flags
//
#define IMAGE_SCN_SCALE_INDEX                0x00000001  // Tls index is scaled

之后就都是节数据了

PE从一个盘加载到内存

网上看了一对感觉将的迷迷糊糊的，我自己写吧还是（也有可能是我笨），首先看《逆向工程核心原理》给出的公式
RAW = 文件中的偏移

1
RAW = RVA - VirtualAddress + PointerToRawData

本质上来说就是(VA-ImageBase)(这块就是RVA)-VirtualAddress+PointerToRawData，一个起点是PointerToRawData，一个起点是ImageBase+VirtualAddress，以这个程序为例。
text段的数据如下

1
2
VirtualAddress   = 0x1000
PointerToRawData = 0x400

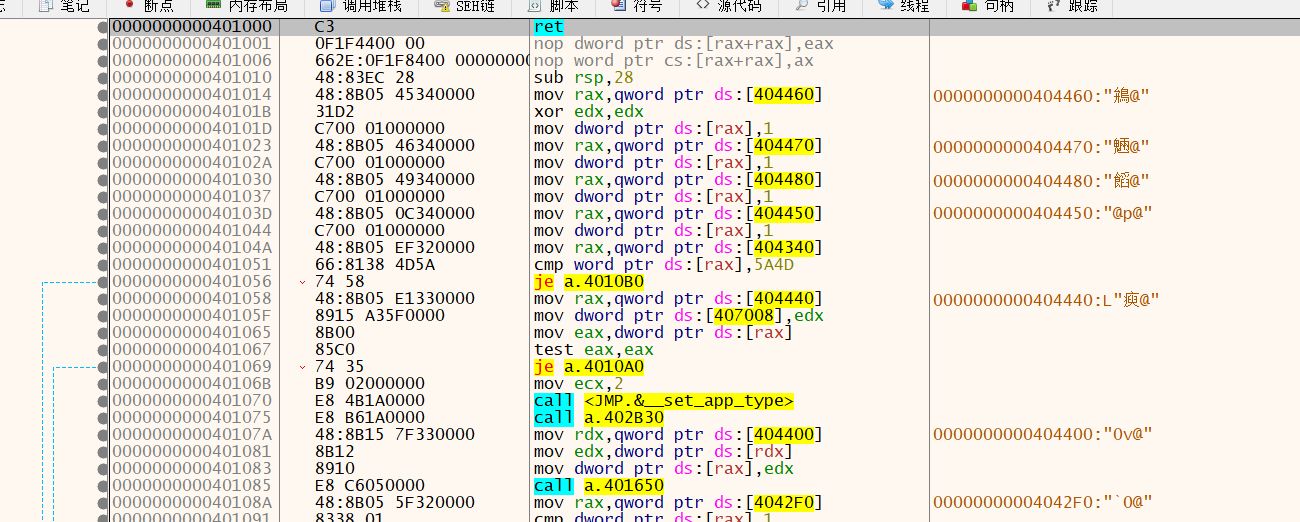

使用调试器打开程序查看（这里使用的是x64dbg）

可以看到0x401000内容如下（ImageBase=0x400000），对应文件内容地址0x400开始

可以看到完全能对应上
